Pallet stretching machine

Pallet stretch wrapping machine

Machine height: 2500 mm. Optionally 3000mm

Max. pallet dimensions: 2200 mm (H), 1200 mm x 1200 mm (W)

Max. pallet weight: 1100 kg

Turntable diameter: 1650 mm. Optionally 1800mm-2000mm

4 wrapping programs:

1- Standart wrapping (Up & Down)

2- Crosswise wrapping

3- Wrapping up

4- While wrapping, waiting on the top of the pallet to cover sheet etc. for upper protection.

• PLC system

• Touch screen HMI in 6 different languages (Turkish, English,

• German, French, Spanish, Arabic)

• Elevator up-down speed adjustement

• Ability to adjust turntable speed

• Able to work on manual mode

• Film roll diameter 250 mm, Film roll inner diameter 76 mm, Film roll width 500 mm

• Colour: Ral 7040-5002 (Gray-Blue)

• Turntable speed adjustable between 7-12 rpm

• Automatic pallet height detection by photocell

• Inverter for soft starting and stopping

• Turntable thickness: 6 mm

• Power requirement: 220V 50/60Hz 1 ph

• Installed power: 1,4 kW

• The whole electronic system is made with PLC system

• Loading ramp is included

• CE certification

• Made in Turkey



OPTIONS:

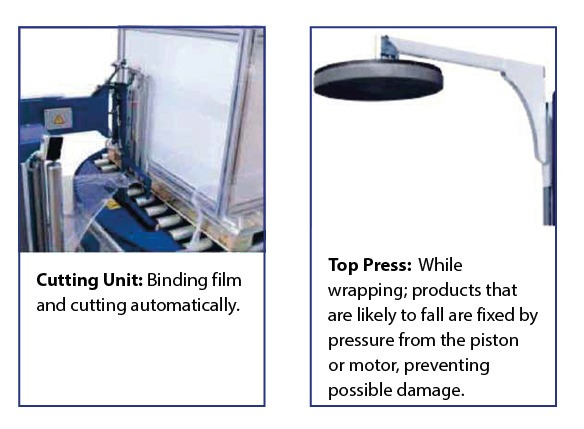

Top Press Unit:    Holds light product or risky loads in place
Cutting Unit:         Automatically performs the film pallet binding and cutting process.

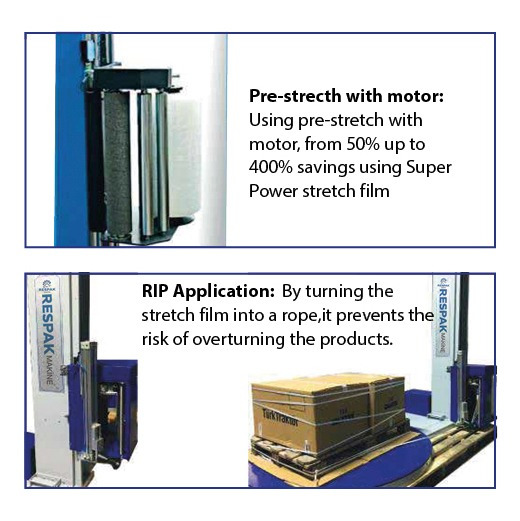

Rip Unit:                Converts stretch film into a rope, forming a horizontal strap around the pallet to keep loads together.
